SEAGULL ARFs

SIG Manufacturing Co.

SEAGULL Models

Radio Control ARFs

Active kits shown in BLACK

Discontinued kits shown in RED

Questionable kits shown in BLUE

NOTE: Clicking on most pics will bring them up, much enlarged, in another window.

Most instruction manuals can be downloaded directly from SIG.

It seems that I must put this statement on each page of the website.

I have NO affiliation

with

SIG Manufacturing Co.

I do not have magical access to kits. I do not have a store that sells kits.

I do not have access to, or sell kit parts. I do not create kits.

I do have a website that shows every kit SIG has ever put out.

You are seeing it now.

NOTE: This page updated and accurate as of

3 September 2024

NOTE: All Seagull ARF manuals are available for download at https://wanderings-ds-2.jimdofree.com/seagull-arfs-instructions/

Just click the link, above.

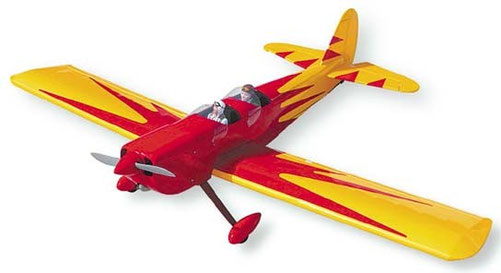

SEA-19

Spacewalker II
Wing Span 63"

Wing Area 627 sq. in.

Fuselage Length 48"

Weight 6.2 - 6.5 lbs.

Rec. Engine Size 2-Stroke .40 - .48 cu. in.,

4-Stroke .50 - .72 cu. in.

Radio Req. 4 Channel w/ 5 servos

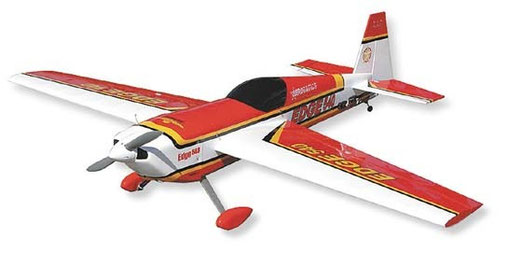

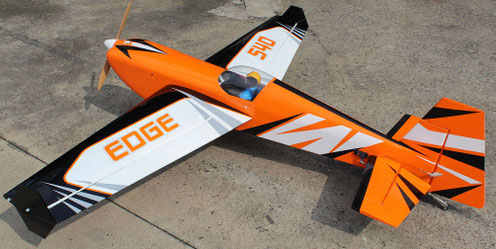

SEA-26A

Edge 540 V2
Wing Span 77.5"

Wing Area 1023 sq. in.

Fuselage Length 71"

Weight 10.6 - 13 lbs.

Radio Req. 6 Channel w/ 6 digital servos
Rec. Engine Size 2-Stroke 1.60 cu. in.,

4-Stroke 1.80 cu. in.

SEA-30

Decathlon Citabria

Wing Span 67.75"

Wing Area 762 sq. in.

Fuselage Length 50"

Weight 7 - 8 lbs.

Rec. Engine Size 2-Stroke .40 - .46 cu. in.,

4-Stroke .50 - .72 cu. in.

Radio Req. 4 Channel minimum w/ 6 servos

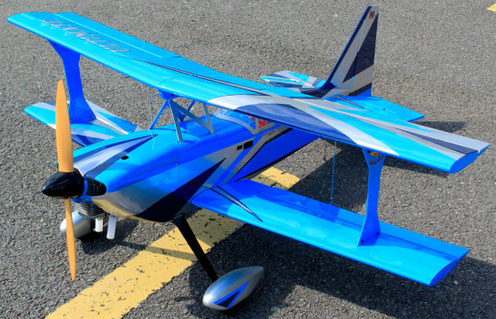

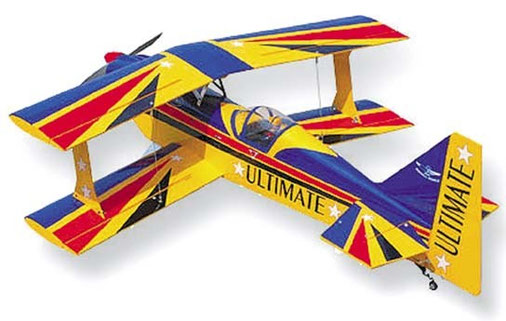

SEA-50

Ultimate Biplane
Wing Span 54.3"

Wing Area 992 sq. in.

Fuselage Length 59.4"

Weight 9.2 - 10.6 lbs.

Rec. Engine Size 2 or 4-Stroke .91 - 1.25

Radio Req. 6 Channel w/ 6 servos

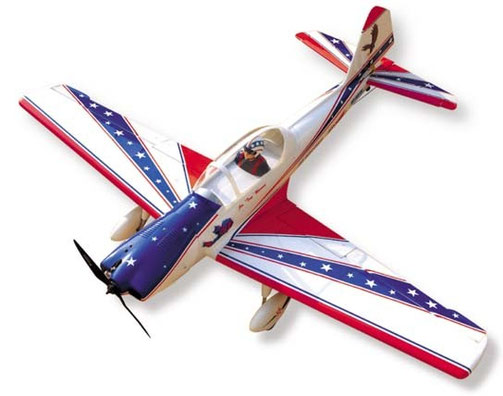

SEA-53B

Yak-54
Wing Span 63.4"

Wing Area 846 sq. in.

Fuselage Length 61.4"

Weight 8.4 - 9.9 lbs.

Rec. Engine Size 2 or 4-Stroke .91 - 1.25

Gas 20 cc

Radio Req. 6 Channel w/ 6 servos

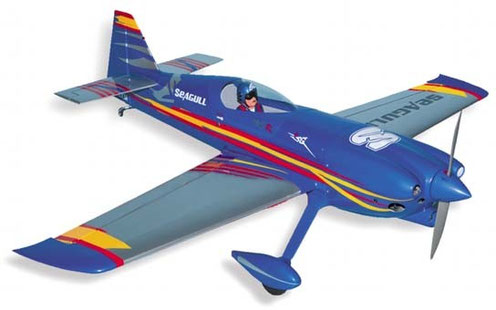

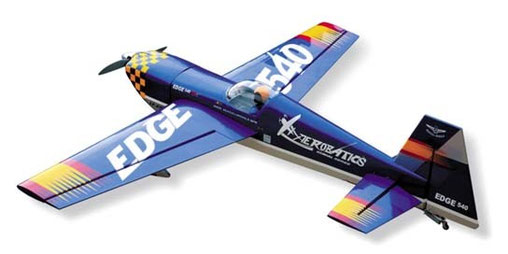

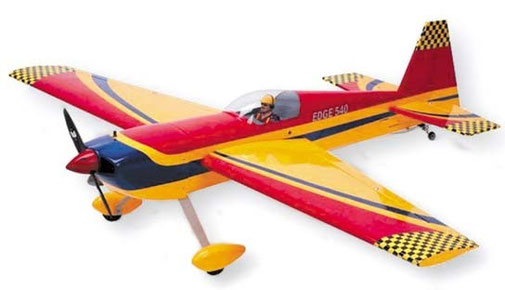

SEA-54

Edge 540

(medium)
Wing Span 68.2"

Wing Area 753 sq. in.

Fuselage Length 60.6"

Weight 8.4 - 8.8 lbs.

Rec. Engine Size 2-Stroke .61 - .91 cu. in.,

4-Stroke .91 - 1.00 cu. in.

Radio Req. 4 Channel w/ 6 servos

SEA-54N

Edge 540

(medium)
Wing Span 68.2"

Wing Area 753 sq. in.

Fuselage Length 60.6"

Weight 8.4 - 8.8 lbs.

Rec. Engine Size 2-Stroke .61 - .91 cu. in.,

4-Stroke .91 - 1.00 cu. in.

Radio Req. 4 Channel w/ 6 servos

SEA-60

Edge 540

(small)
Wing Span 59"

Wing Area 645 sq. in.

Fuselage Length 50"

Weight 5.7 - 6.4 lbs.

Rec. Engine Size 2-Stroke .46 - .55 cu. in.,

4-Stroke .72 cu. in.

Radio Req. 4 Channel w/ 6 servos

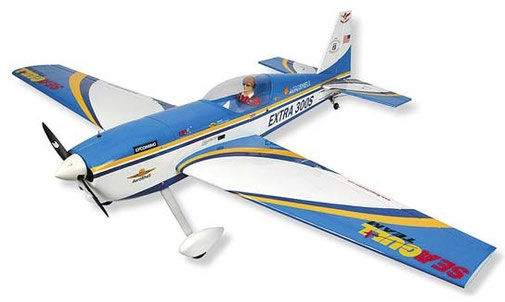

SEA-70B

Extra 300
Wing Span 63"

Wing Area 662.8 sq. in.

Fuselage Length 45.9"

Weight 6.6 - 7.5 lbs.

Rec. Engine Size 2-Stroke .61 - .75 cu. in.
4-Stroke .72 - 1.15 cu. in.

Radio Req. 4 Channel w/ 6 servos

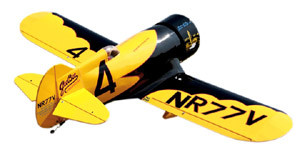

SEA-82

GeeBee-120 Z
Wing Span 70.9"

Wing Area 863.4 sq. in.

Fuselage Length 46.6"

Weight 10.6 - 11.5 lb.

Rec. Engine Size

2-Stroke 1.20 cu. in.
4-Stroke 1.50 cu. in.

Radio Req. 4 Channel w/ 6 servos

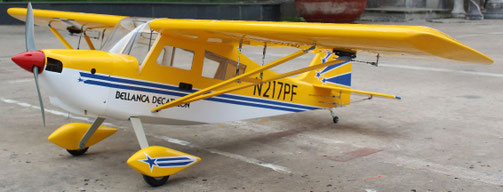

SEA-83

Decathlon ARF

(no information)

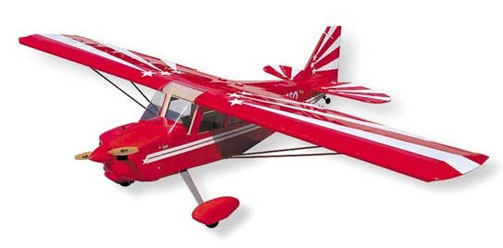

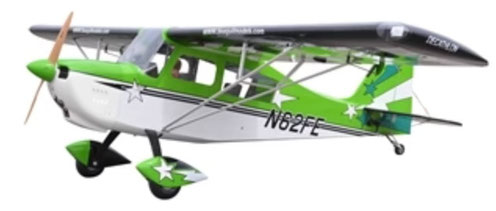

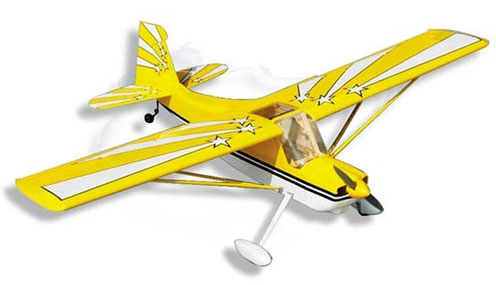

SEA-86

Super Decathlon
Wing Span 70.9"

Wing Area 837 sq. in.

Fuselage Length 47.6"

Weight 7.5 - 8.8 lbs.

Rec. Engine Size 2-Stroke .75 cu. in.
4-Stroke .91 cu. in.

Radio Req. 4 Channel w/ 6 servos

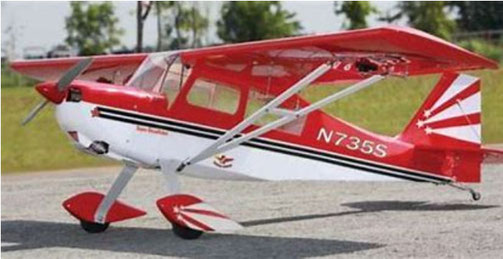

SEA-86Y

Super Decathlon
Wing Span 70.9"

Wing Area 837 sq. in.

Fuselage Length 47.6"

Weight 7.5 - 8.8 lbs.

Rec. Engine Size 2-Stroke .75 cu. in.
4-Stroke .91 cu. in.

Radio Req. 4 Channel w/ 6 servos

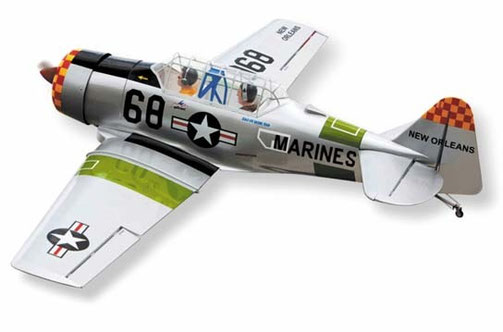

SEA-88

AT-6 Texan
Wing Span 70.9"

Wing Area 734.7 sq. in.
Fuselage Length 46.1"

Weight    7.1 - 8.8 lbs.
Rec. Engine Size    2-Stroke .75 cu. in.
4-Stroke .91 cu. in.
Radio Req.    4 Channel w/ 6 servos

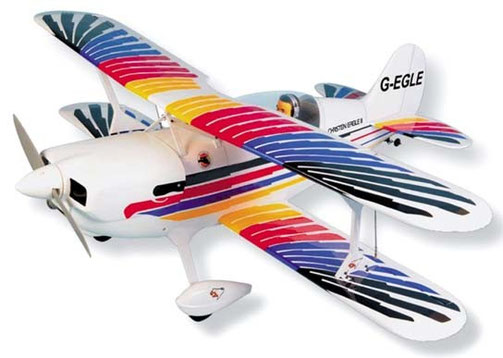

SEA-104

Christen Eagle

Wing Span 53.9"

Wing Area 922.3 sq. in.
Fuselage Length 47.4"

Weight    8.4 - 9.9 lbs.
Rec. Engine Size    2-Stroke .75 - .91 cu. in.
4-Stroke .91 - 1.25 cu. in.
Optional electric power conversion
Radio Req.    6 Channel w/ 6 servos

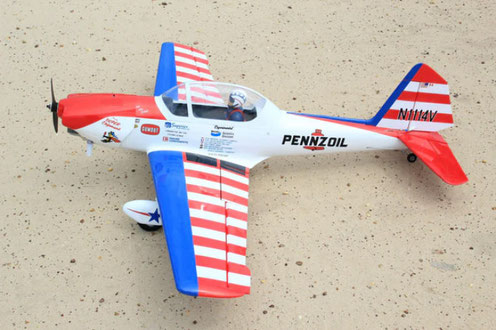

SEA-120

Super Chipmunk
Wing Span 63"

Wing Area 643.3 sq. in.
Fuselage Length 52.7"

Weight    7.9 lbs.
Rec. Engine Size    2-Stroke .55 cu. in.
4-Stroke .72 cu. in.
Optional electric power conversion
Radio Req.    4 Channel w/ 6 servos

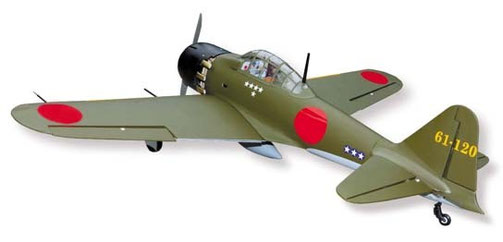

SEA-123

A6M Zero
Wing Span 66.9"

Wing Area 761.1 sq. in.
Fuselage Length 51.1"

Weight    9.3 lbs.
Rec. Engine Size    2-Stroke .75 - .91 cu. in.
4-Stroke .91 - 1.25 cu. in.
Optional electric power conversion
Radio Req.    6 Channel w/ 8 servos

SEA-128

MXS-R
Wing Span 65.4"

Wing Area 767.3 sq.in.
Fuselage Length 55.8"

Weight    9.3 - 10.6 lbs.
Rec. Engine Size    2-Stroke .91 - 1.2 cu. in.
4-Stroke 1.00 - 1.25 cu. in.
Optional electric power conversion
Radio Req.    6 Channel w/ 5 servos

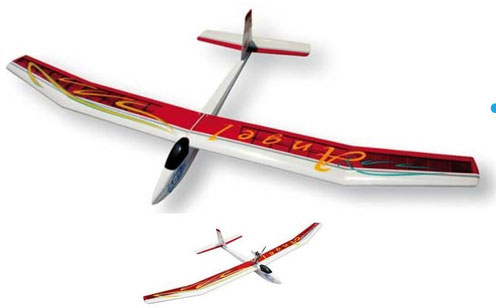

SEA-129

Angel-2000 Sailplane

with Power Pod

Wing Span 78.7"

Wing Area 582.8 sq.in.
Fuselage Length 45.1"

Weight    2.4 lbs.
Rec. Electric Motor    15-size                    (Himax 3522-990; Power 15; Rimfire 15)
Radio Req.    4 Channel w/ 2 servos

SEA-136

Fairchild PT-19
Wing Span 80.5"

Wing Area 965.7 sq. in.
Fuselage Length 58.6"

Weight 11.9 lbs.

Rec. Engine Size 2-Stroke .91 - 1.20 cu. in.,

4-Stroke .91 - 1.20 cu. in.
Radio Req. 6 Channel w/ 8 servos

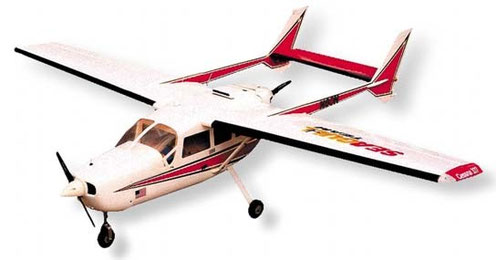

SEA-146

Cessna 337 Skymaster
Wing Span 76.8"

Wing Area 806 sq.in.
Fuselage Length 57.1"

Weight 9.9 - 11 lbs.
Rec. Engine Size 2-Stroke .36 - .46 cu. in.,

4-Stroke .52 - .72 cu. in.
Optional electric power conversion
Radio Req. 6 Channel w/ 10 servos

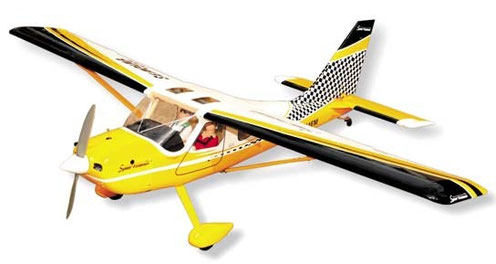

SEA-158

Glasair GS-2 Sportsman
Wing Span 70.9"

Wing Area 644.8 sq.in.
Fuselage Length 49.2"

Weight 9.5 - 11.5 lbs.
Rec. Engine Size 2-Stroke .75 - .91 cu. in.,

4-Stroke .91 - 1.10 cu. in.
Optional electric power conversion
Radio Req. 6 Channel w/ 8 servos

SEA-158F

Glasair Sportsman Floats

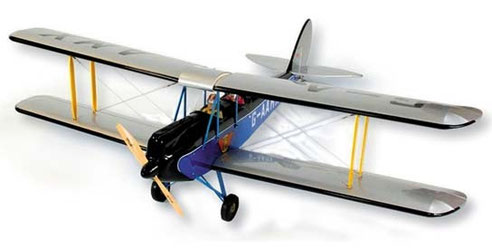

SEA-169N

DH60 Gypsy Moth
Wing Span 72.0"

Wing Area 1357 sq.in.
Fuselage Length 55.9"

Weight 9.9 lbs.
Rec. Engine Size 2-Stroke .90 cu. in.,

4-Stroke 1.20 cu. in.

90-size Electric Motor
Radio Req. 4 Channel w/ 6 servos

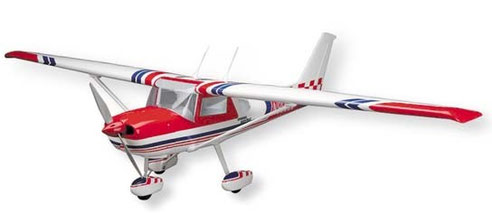

SEA-174

Cessna 152
Wing Span 79.9"

Wing Area 911.4 sq.in.
Fuselage Length 57.5"

Weight 9.9 lbs.
Rec. Engine Size 2-Stroke .75 - .91 cu. in.,

4-Stroke .91 - 1.25 cu. in.

Optional electric power conversion
Radio Req. 5 Channel w/ 8 servos

SEA-180

Aviat Christen Husky
Wing Span 79.9"

Wing Area 922.3 sq.in.
Fuselage Length 50"

Weight 7.9 - 8.8 lbs.
Rec. Engine Size 2-Stroke .61 - .75 cu. in.,

4-Stroke .91 cu. in.
Optional electric power conversion
Radio Req. 5 Channel w/ 7 servos

SEA-180F

Aviat Christen Husky Floats

SEA-183

Spitfire Mk-9
Wing Span 79.9"

Wing Area 1165.6 sq.in.
Fuselage Length 64.5"

Weight    11 - 13.2 lbs.
Rec. Engine Size    2 or 4-Stroke 1.20 - 1.80
Gasoline Engine 28 - 40 cc
Radio Req.    6 Channel w/ 10 servos

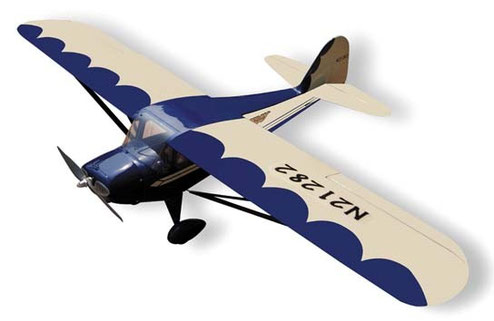

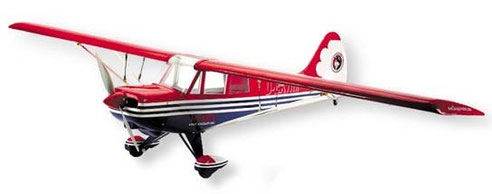

SEA-193

Taylorcraft EP25-E
Wing Span 62"

Wing Area 620 sq.in.
Fuselage Length 40.9"

Weight    3.3 - 3.9 lbs
Rec. Electric Motor    25-size
(Himax HC 3522-990; E-Flite Power 25)
Radio Req.    4 Channel w/ 4 servos

SEA-195

Savage Cruiser
Wing Span 79.9"

Wing Area 1001.3 sq.in.
Fuselage Length 58.8"

Weight 9.7 - 10.6 lbs.
Rec. Engine Size 2-Stroke .75 - .91 cu. in.,

4-Stroke 1.00 - 1.25 cu. in.
Optional electric power conversion
Radio Req. 6 Channel w/ 11 servos

SEA-195F

Savage Cruiser Floats

SEA-199N

Extra-300

(Large)
Wing Span 54.9"

Wing Area 517.7 sq.in.
Fuselage Length 44.4"

Weight 6.6 lbs
Rec. Engine Size 2-Stroke .46 cu. in.,

4-Stroke .60 cu. in.

46 - 60 size Electric Motor
Radio Req. 4 Channel w/ 5 servos

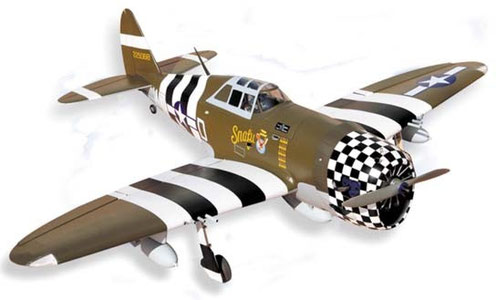

SEA-207

P-47G Thunderbolt
Wing Span 63"

Wing Area 728.5 sq.in.
Fuselage Length 51.8"

Weight    9.3 - 9.9 lbs.
Rec. Engine Size    2-Stroke .61 - .91 cu. in.
4-Stroke .91 - 1.00 cu. in.
Optional electric power conversion
Radio Req.    6 Channel w/ 9 servos

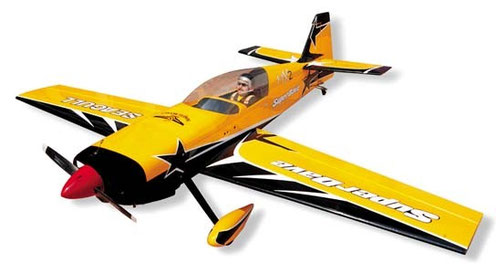

SEA-208

MX-2 Super Dave
Wing Span 59.1"

Wing Area 632.4 sq.in.
Fuselage Length 50.3"

Weight    7.1 - 7.9 lbs
Rec. Engine Size    2-Stroke .55 cu. in.
4-Stroke .82 cu. in.
Gas 10 cc
60 - 80 size Electric Motor
Radio Req.    4 Channel w/ 5 servos

SEA-209

Maxi Lift

Wing Span 87.6"

Wing Area 1072.6 sq.in.
Fuselage Length 61.2"

Weight    11.5 - 12.1 lbs.
Rec. Engine     Gas 33 cc
Radio Req.    7 Channel w/ 10 servos

SEA-210

I-Sport
Wing Span 65"

Wing Area 821.5 sq.in.
Fuselage Length 50.7"

Weight    7.1 - 7.9 lbs
Rec. Engine Size    2-Stroke .55 - .61 cu. in.
4-Stroke .61 cu. in.
Gas 10 - 15 cc
60-size Electric Motor

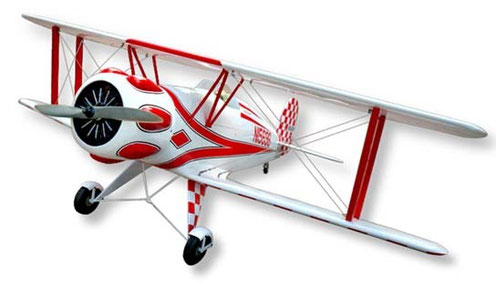

Radio Req.    5 Channel w/ 7 servos

SEA-212US

Bucker JU-133 Jungmeister
Wing Span 65"

Wing Area 1240 sq.in.
Fuselage Length 57.8"

Weight    11 lbs.
Rec. Engine Size    2-Stroke .90 cu. in.
4-Stroke 1.2 cu. in.
Gasoline Engine 20 - 22 cc
Radio Req.    4 Channel w/ 6 servos

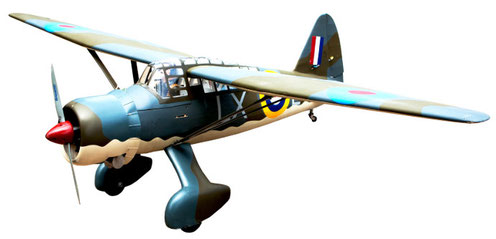

SEA-216

Westland Lysander
Wing Span 118"

Wing Area 1471 sq.in.
Fuselage Length 70.4"

Weight 22 lbs.
Rec. Engine Size GAS 2-Stroke 33-55 cc
GAS 4-Stroke 40-60 cc
Radio Req. 6 Channel w/ 8 servos

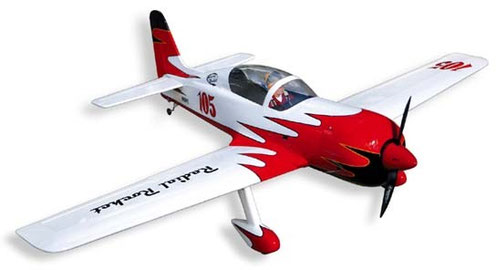

SEA-229

Radial Rocket
Wing Span 62.3"

Wing Area 570.4 sq. in.
Length 45.1"

Weight (approx.)    7.1 - 7.3 lbs.
Rec. Engine    10 cc Gas or Glow
Radio Req.    5-Channel w/ 7 Servos

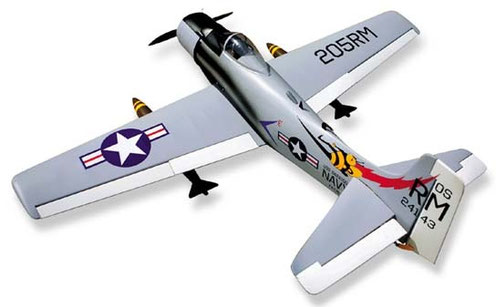

SEA-230B

A1E Skyraider
Wing Span 63"

Wing Area 637 sq. in.
Length 47.8"

   Weight (approx.)    8.6 lbs.
Rec. Engine    10 - 15 cc Gas or Glow
or equivalent Electric Motor
Radio Req.    6-Channel with 7 Servos

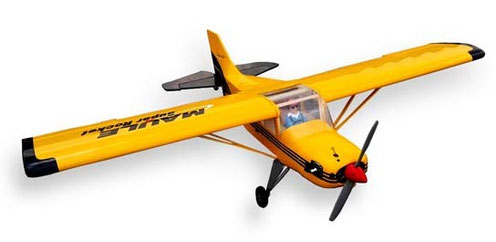

SEA-232

Maule Super Rocket
Wing Span 70.9"

Wing Area 810.3 sq. in.
Length 47.4"

Weight 9.0 lbs.
Power Options Gas 10 - 15 cc

Glow .60 - .90 cu. in.

Electric: 1500 watt brushless motor
Radio Req. 6 channel with 8 standard servos

SEA-237B

Steen Skybolt
Wing Span 61"

Wing Area 1023 sq. in.
Fuselage Length 48.2"

Weight 9.3 lbs.
Rec. Engine Size 15 cc ( .90 cu. in.)

Gas or Glow
Radio Req. 6-Channel with 6 Standard Servos

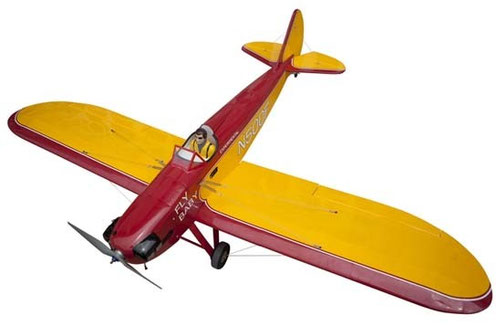

SEA-238

Bowers Fly Baby
Wing Span 68.9"

Wing Area 776.6 sq. in.
Fuselage Length 48.2"

Weight 7.7 lbs.
Rec. Engine 10-15 cc ( .61 cu. in.)

Gas or Glow

Power-60 Electric
Radio Req. 4-Channel with 5 Standard Servos

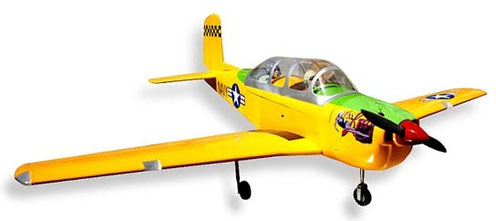

SEA-240Y

T-34 Mentor
Wing Span 74.8"

Wing Area 992 sq. in.
Fuselage Length 56.3"

Weight     11.2 lbs.
Power Options    20 - 22 cc Gas, .90 - 1.20 cu. in. Glow
Electric Motor    1700-2000 watt; 250-400 kv (i.e. Power 110)
Radio Req.    6-Channel with 11 Servos

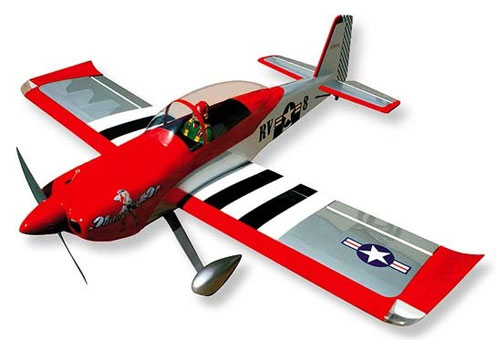

SEA-249D

Vans RV-8 Diamond Di
Wing Span 70.9"

Wing Area 992 sq. in.
Fuselage Length 58"

Weight 11 lbs.
Power Options 20 cc Gas, .91 cu. in. Glow
Electric Motor 1700-2000 watt; 250-400 kv

(i.e. Power 90-110)
Radio Req. 6-Channel with 8 Standard Servos

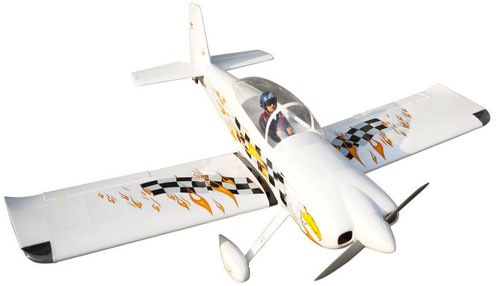

SEA-249E

Vans RV-8 Eagle With Fire
Wing Span 70.9"

Wing Area 992 sq. in.
Fuselage Length 58"

Weight 11 lbs.
Power Options 20 cc Gas, .91 cu. in. Glow
Electric Motor 1700-2000 watt; 250-400 kv

(i.e. Power 90-110)
Radio Req. 6-Channel with 8 Standard Servos

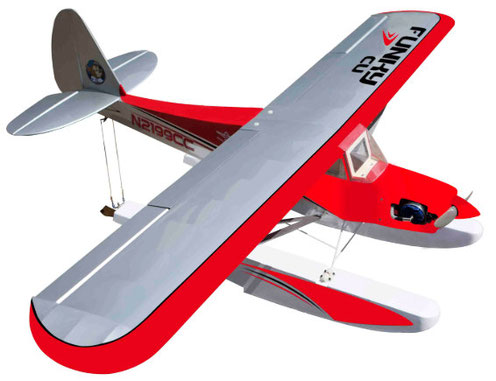

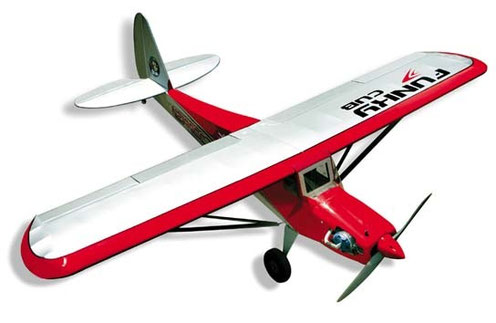

SEA-254R

Funky Cub
Wing Span 70.9"

Wing Area 793.9 sq. in.
Length 50.4"

Weight 8.2 lbs.
Rec. Engine 10 - 15 cc Gas or Glow

or equivalent Electric Motor
Radio Req. 6-Channel with 8 Servos

SEA-254FR

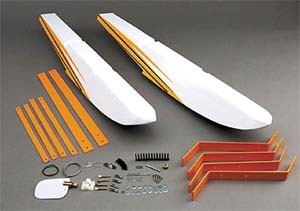

Funky Cub Float Kit
Wing Span 70.9"

Wing Area 793.9 sq. in.
Length 50.4"

Weight 8.2 lbs.
Rec. Engine 10 - 15 cc Gas or Glow

or equivalent Electric Motor
Radio Req. 6-Channel with 8 Servos

SEA-255R

Classic Ugly Stick
Wing Span 70.9"

Wing Area 1033.2 sq. in.
Length 57.8"

Weight 7.7 lbs.
Rec. Engine 10 - 15 cc Gas or Glow

or equivalent Electric Motor
Radio Req. 4-Channel with 5 Servos

SEA-270

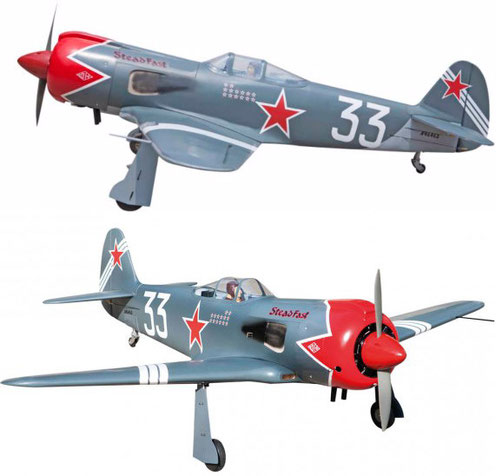

Yak-3U Steadfast
Wing Span 63"

Wing Area 723.9 sq. in.
Length 55.4"

Weight 11.5 lbs.
Rec. Engine 15 - 25 cc Gas or Glow

or equivalent Electric Motor
Radio Req. 7-Channel with 9 Servos

SEA-284

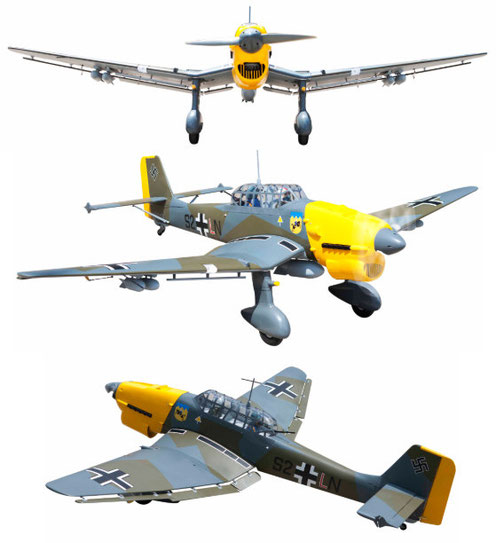

JU-87 Stuka
Wing Span 90"

Wing Area 1328.7 sq. in.
Length 63.3"

Weight 17.6 lbs.
Rec. Engine 38 - 50 cc Gas or Glow

or equivalent Electric Motor
Radio Req. 6-Channel with 7 Servos

SEA-383AE

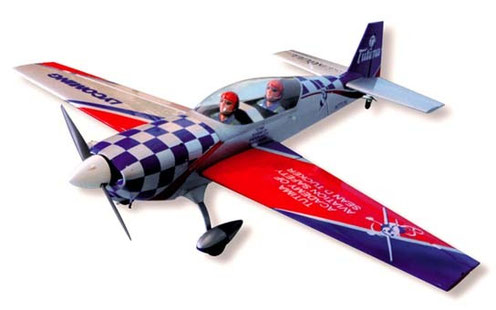

Edge 540 V2
Wing Span 77.5"

Wing Area 1023 sq. in.

Fuselage Length 71"

Weight 10.6 - 13 lbs.

Radio Req. 6 Channel w/ 6 digital servos
Rec. Engine Size 2-Stroke 1.60 cu. in.,

4-Stroke 1.80 cu. in.

SEA-387

Yak-54 3D

Wing Span 64"

Wing Area 846 sq. in.

Fuselage Length 61.4"

Weight 9.3 lbs.

Radio Req. 5 Channel w/ 5 digital servos
Rec. Engine Size 2-Stroke .91-1.25 cu. in.,

4-Stroke 1.80 cu. in.

20cc Gas

SEA-389

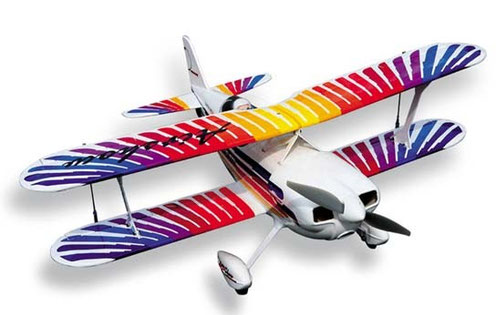

Ultimate Biplane

Wing Span 54.3"

Wing Area 992 sq. in.

Fuselage Length 59.4"

Weight 10.6 lbs.

Radio Req. 6 Channel w/ 6 digital servos
Rec. Engine Size 20cc Gas

Motor: 2000 270W / ESC 85A - 110A / Lipo 6s - 8s / Prop 17x8 - 19x10

SEA-X7A

Decathlon EP
Wing Span 51"

Wing Area 434 sq.in.
Fuselage Length 39"

Weight 32 - 44 oz
Rec. Motor 400 watts

(Himax 3522-990; Power 25, Rimfire 25)

Rec. Battery 3 cell, 2100-3200 mah Li-Po Rec. Speed Control 35 - 40 A
Radio Req. 4 Channel w/ 4 micro servos

SEA-X13

Spacewalker II EP
Wing Span 62.2"

Wing Area 635.5 sq.in.
Fuselage Length 45.7"

Weight    70 - 92 oz.
Rec. Motor    450 - 500 watts (Himax 3528-1000; Power 32; Rimfire 32)
Rec. Battery    4-5 cell, 4000-5000 mah Li-Po

Rec. Speed Control 60 - 100 A
Radio Req. 4 Channel w/ 5 mini servos

SEA-X104

Mini Christen Eagle EP
Wing Span 35.4"

Wing Area 392.2 sq.in.
Fuselage Length 31"

Weight 50 - 56 oz.
Rec. Motor 350 - 400 watts

(Himax 3516-1130; Power 10; Rimfire 15)
Rec. Battery 3-4 cell, 2200-2600 mah Li-Po

Rec. Speed Control 40 A
Radio Req. 4 Channel w/ 4 micro servos

These pages last updated:

19 November 2024

ALIEN, HERR & SEAGULL manuals site last updated:

19 November 2024

Active & Discontinued

kits are current, as compared to the SIG website,

2 April 2023.

(At about this date, SIG put every kit on their website as "sold out". No updates possible)

Engines, if not otherwise specified, indicate

2-stroke, plain-bearing, glow.

I am always happy to receive comments and suggestions concerning this SIG History site. If ANYONE finds information I do not have, I would be honored to be able to include it here.

Note: pictures here don't always copy with the greatest quality, or size. I have all the originals shown here, and a lot more besides. Should you ever want an original copy of any pic here, just e-mail me. I will be happy to send it to you.

For all things, feel free to write me at this e-mail address:

E-mail - dwwsmw52@yahoo.com
