SIG Radio Control ARF's
Kits 44-83
For some ARFs there are multiple versions, based on size, color, power type, etc. Each has their own kit number. I've listed each variant.
Active kits shown in BLACK
Discontinued kits shown in RED
Active kits, not in stock, in BLUE
Never Released kits shown in GRAY
NOTE: Clicking on most pics will bring them up, much enlarged, in another window.
It seems that I must put this statement on each page of the website.
I have NO affiliation
with
SIG Manufacturing Co.
I do not have magical access to kits. I do not have a store that sells kits.
I do not have access to, or sell kit parts. I do not create kits.
I do have a website that shows every kit SIG has ever put out.
You are seeing it now.

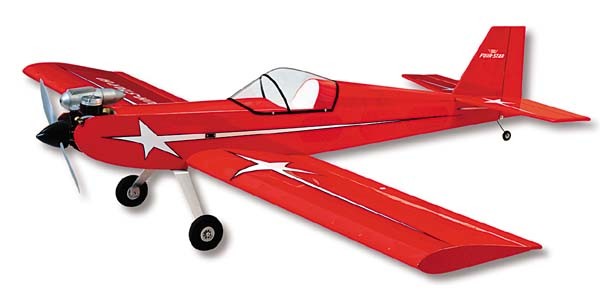

RC-44ARF
Four-Star 40 ARF
2003
Designed by: Bruce Tharp
Wingspan - 54"
Length - 47.5"
Area - 585 Sq.In.
Weight - 5-5.5 lbs
Radio - 4 channel
Engine - 2-stroke .40-.46, 4-stroke .40-.54
motor - 500-800 watt brushless 60-75 amp ESC

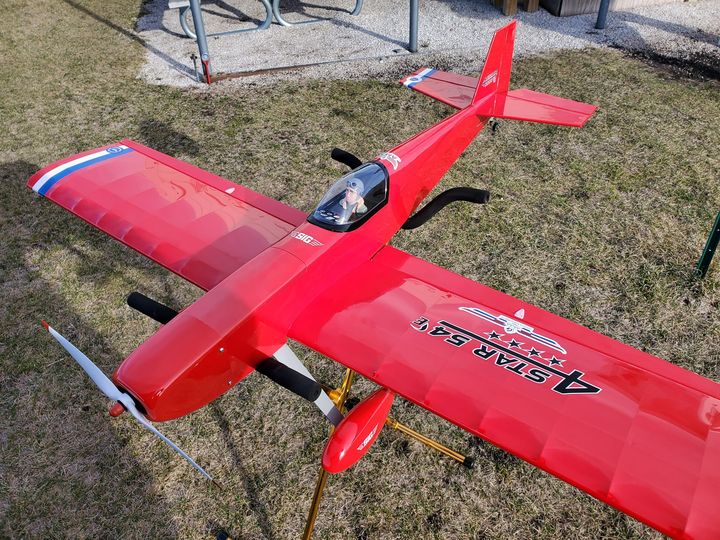

RC-44EGARF-Y/R

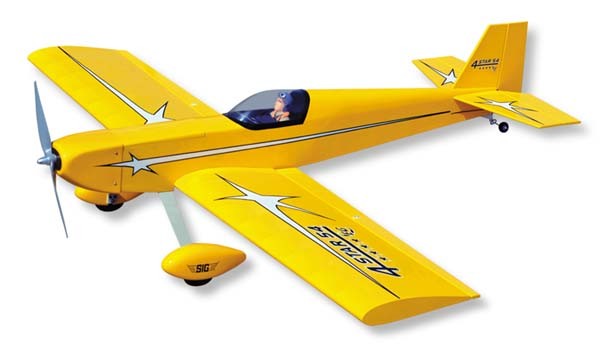

Four-Star 54 EG ARF
Designed by: Bruce Tharp
Wingspan - 54"
Length - 47.5"
Area - 585 Sq.In.
Weight - 5-5.5 lbs
Radio - 4 channel
Engine - 2-stroke .40-.46, 4-stroke .40-.54
motor - 500-800 watt brushless 60-75 amp ESC

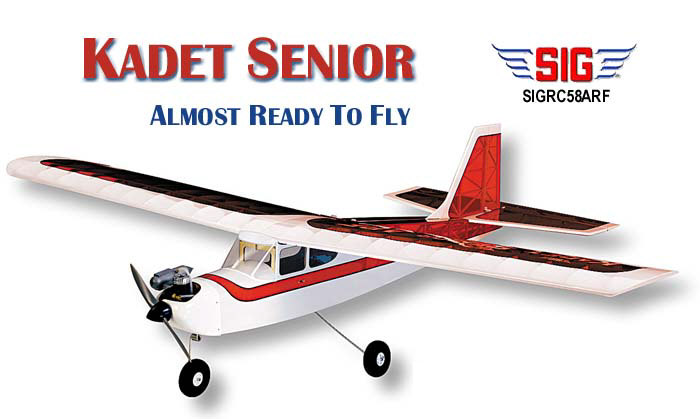

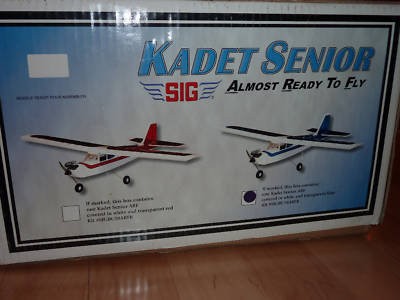

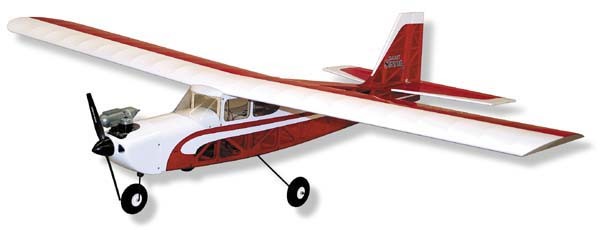

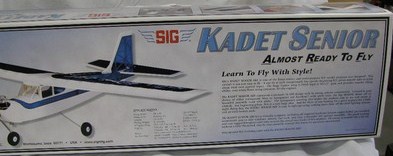

RC-58ARF
Kadet Sr. ARF
Wingspan - 78"
Length - 62"
Area - 1150 Sq.In.
Weight - 6 lbs
Radio required - 3 channel
Engine - 2-stroke .29-.40,
4-stroke .35-.45
Note: The original RC-58ARF Instruction booklet (which is too large to include on this website) is no longer available in .pdf form directly through the SIG website.
However, I have the .pdf file stored in dropbox.com and you can download a copy directly by clicking on the link below:
https://www.dropbox.com/s/244w5dopjp8wvdk/SIGRC58ARF-kadet_senior%20ARF%20Manual.pdf?dl=0
Once there, on the upper right side of the page should be 3 dots. Click on the dots and choose
"download". Should you have any problems at all, e-mail me and I can send the link directly.
RC-58EGARF
Kadet Sr. EG ARF
Wingspan - 78"
Length - 62"
Area - 1150 Sq.In.
Weight - 6 lbs
Radio required - 3 channel
Engine - 2-stroke .29-.40, 4-stroke .35-.45

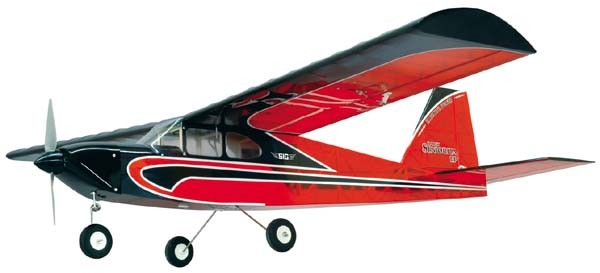

RC-60ARF
Kadet Seniorita EP ARF
2008
Wingspan 63"
Wing Area 750 in²
Length 52"
Weight 74 oz
Motor 400 Watt Brushless Outrunner (such as HIMAX HC3522-0990)
Li-Po 3S1P 3300 (such as Order No. RCSSAF07023)
ESC 45A (minimum)
Radio 4-Channel with 4 standard Servos 2 each 12 inch servo extensions, Standard Y-harness chord

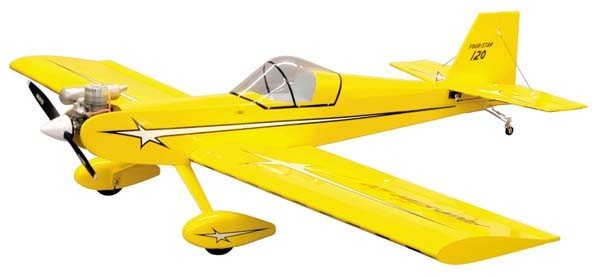

RC-65ARF
Four-Star 120 ARF
Designed by: Bruce Tharp
Wing Span 81"
Wing Area 1205 in²
Length 65 in.
Weight 11.5 - 12 lbs.
Radio - 4 Channel w/5 servos (rudder servo 80 oz./in. minimum and 1200 mAh receiver battery required)
Engine 2-stroke .90 - 1.20 in 4-stroke 1.20 - 1.50 in

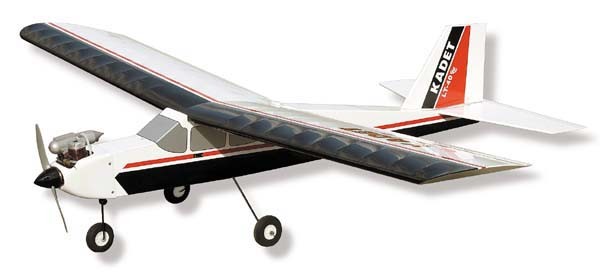

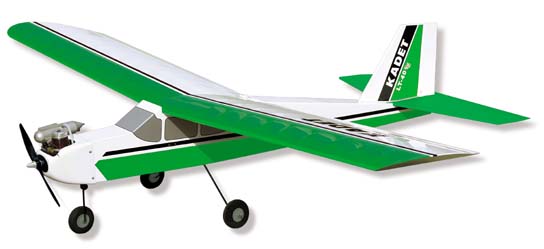

RC-67EGVARF
Kadet LT-40 ARF
2014
Wingspan - 70"
Length - 57"
Area - 900 Sq.In.
Weight - 6-6.25 lbs
Radio - 4 channel
Engine - 2-stroke .40-.46, 4-stroke .40-.54
Motor - 500-800 watt brushless 800-1000kv.
50-75 amp ESC 3-4S 4000-5000mAh Lipo Pack
Limited edition Kadet LT40
RC-67EGVARFG
Kadet LT-40 ARF
2016
Wingspan - 70"
Length - 57"
Area - 900 Sq.In.
Weight - 6-6.25 lbs
Radio - 4 channel
Engine - 2-stroke .40-.46, 4-stroke .40-.54
Motor - 500-800 watt brushless 800-1000kv. 50-75 amp ESC 3-4S 4000-5000mAh Lipo Pack

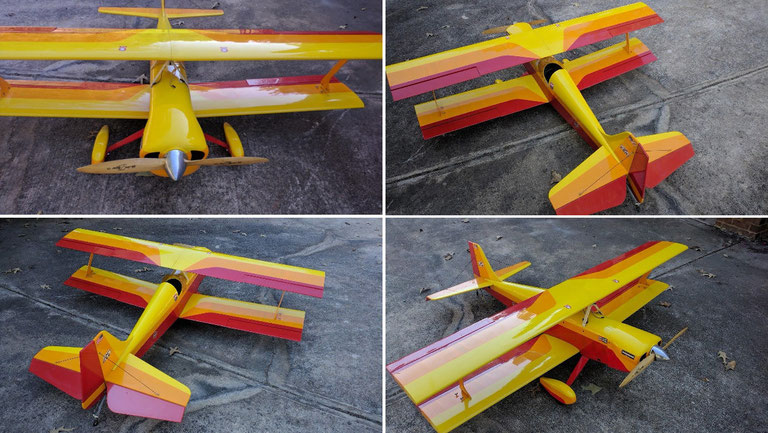

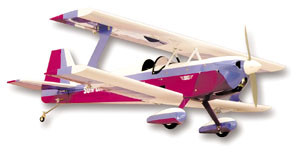

RC-72ARF

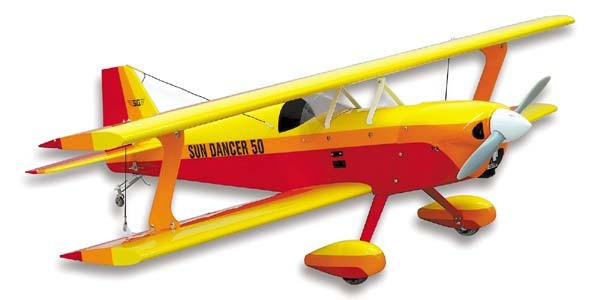

Sundance-50 ARF
Wing Span (Top) 48"
Wing Area (Total) 757 in²
Length 45"
Weight 6 lb
Radio Required: 4 Channel, 5 Standard Servos
Engine Required: .46 - .53 in³ 2-Stroke Glow
.56 - .72 in³ 4-Stroke Glow

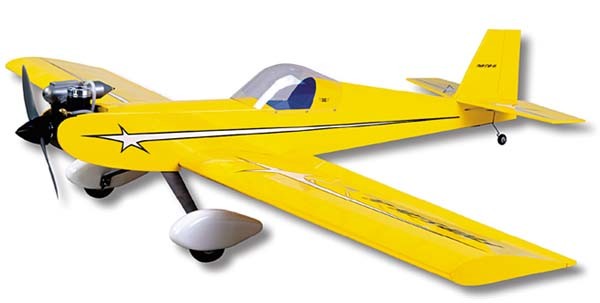

RC-73ARF
Four-Star 60 ARF
Designed by: Bruce Tharp
Wingspan 71 in
Wing Area 920 in²
Length 57"
Weight 7 - 8
lbs
Radio - 4 channel with 5 std. servos
Engine - .60-.75 in³ 2 stroke .65-.90 in³ 4 stroke

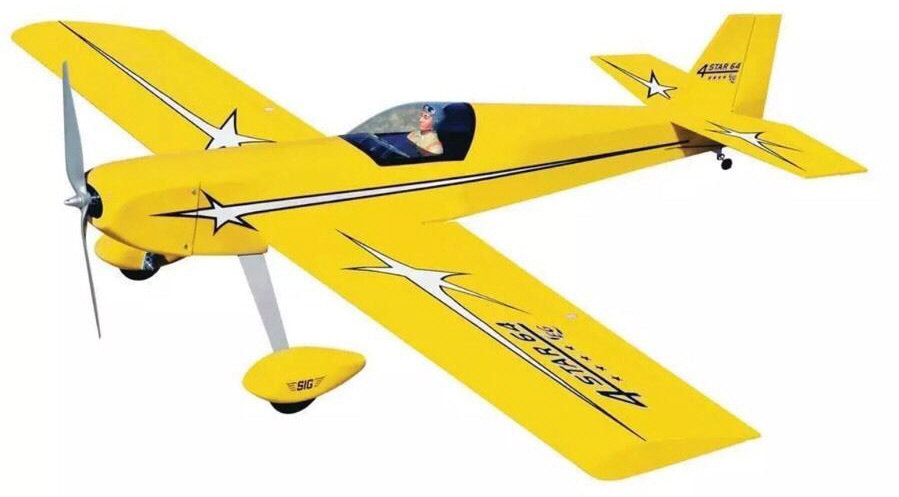

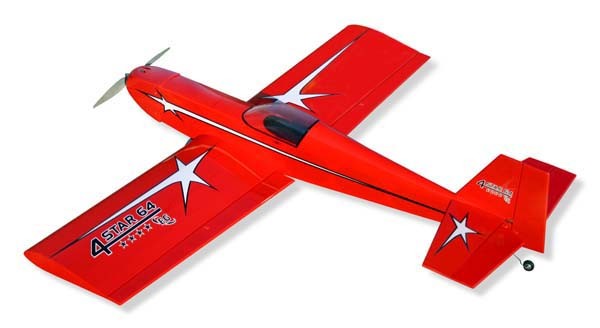

RC-73EGARF(R/Y)
Four-Star 64 EG ARF
2013
Designed by: Bruce Tharp
Wingspan - 64"
Length - 57"
Area - 847 Sq.In.
Weight - 7-8.25 lbs
Radio - 4 channel
Engine - 2-stroke .60-.75, 4-stroke .60-.90
Motor - 1200-1700 watt brushless 400-600kv.
75 amp ESC 4-6S 4000-5000mAh Lipo Pack

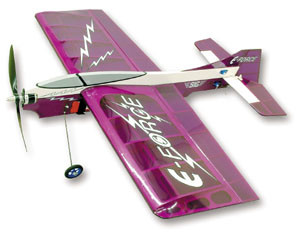

RC-75EPARF
E-Force EP ARF
Wing Span: 31.5"
Wing Area: 313.5 in²
Typical Weight: 15.3 oz
Radio Required: 4 Channel, Micro receiver, 4 Micro Servos
Motor Himax. HC2808-0980 brushless outrunner
Speed Control: 10 A brushless sensorless ESC
Li-Po battery pack: 3S 11.1V
900 mAh
Fast charger: Lithium Solution II

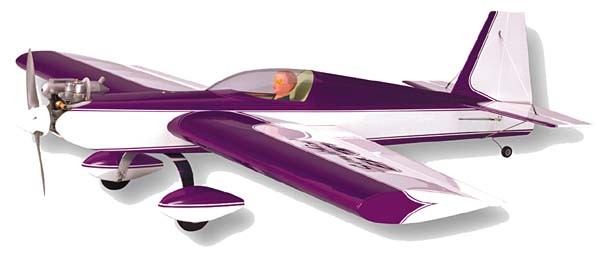

RC-76ARF
Somethin' Extra ARF
2001
Wingspan 51.5"
Wing Area 614 sq.in.
Length 48.25"
Weight 4.25 - 4.75 lb
Radio Required 4-Channel, 5
servo
Recommended Engines .40 to .46 in³ 2 stroke .56 to .65 in³ 4 stroke

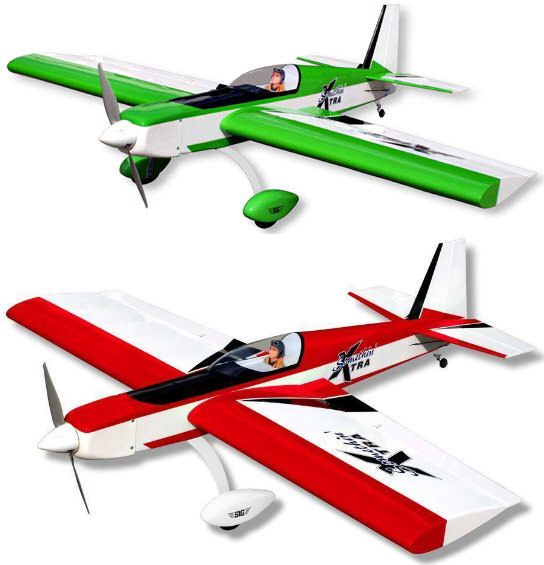

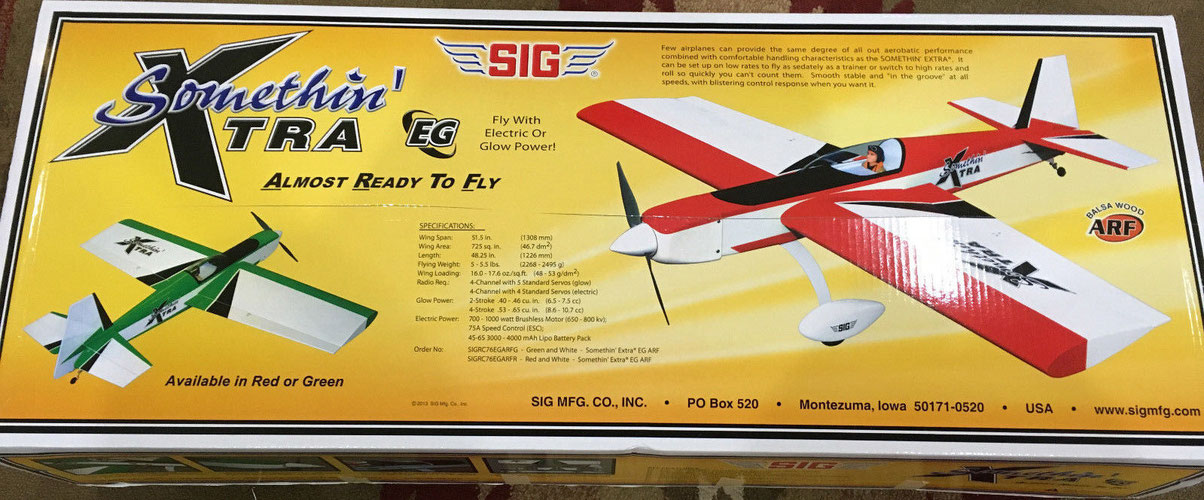

RC-76EGARF(R/G)
Somethin' Extra ARF
2013
Wingspan - 51.5"
Length - 48.25"
Area - 725 Sq.In.
Weight - 5-5.5 lbs
Radio - 4 channel
Engine - 2-stroke .40-.46, 4-stroke .53-.65
Motor - 700-1000 watt brushless 300-400kv.
75 amp ESC 4-6S 3000-4000mAh Lipo Pack

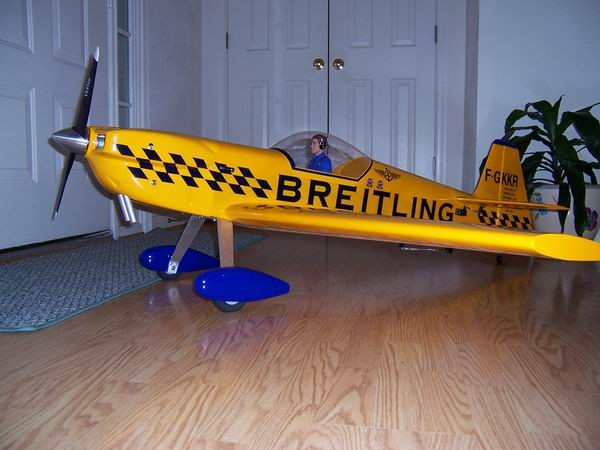

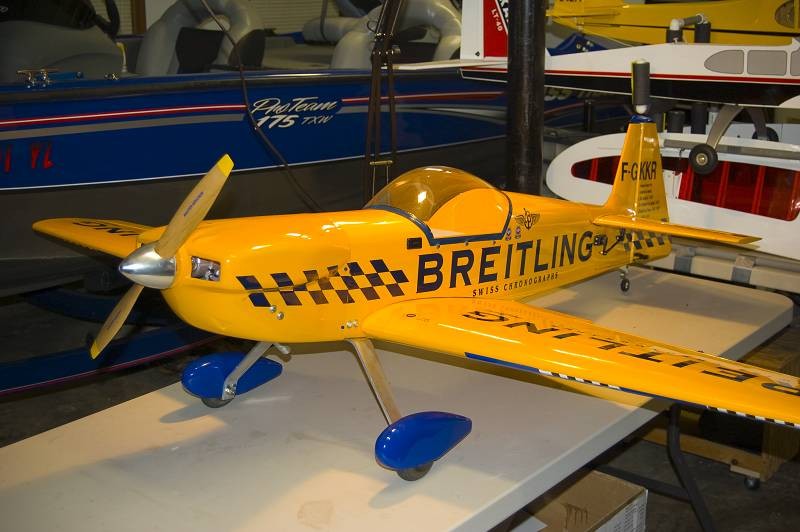

RC-77ARF
CAP 231 EX ARF
Wingspan 73"
Wing Area 963 sq in
Length 65.5"
Weight 10.5-11 lbs
Radio 4-ch, 6 servo
Engine 2-stroke 1.20-1.50,
4-stroke 1.20-1.50
RC-78ARF

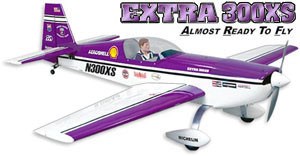

Extra 300XS ARF
Wingspan 73 5/8"
Wing Area 990 in²
Fuselage Length 68"
Weight 12 - 13 lb
Radio Recommended 4 Channel,
6 Servos
Engines Recommended 1.20-1.50 in³ 2 stroke 1.40-1.80 in³ 4 stroke

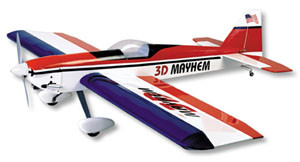

RC-79ARF
Mayhem 3D ARF
Wingspan: 72- 1/8"
Wing Area: 1167 in²
Fuse Length: 59"
Weight: 7 - 8 lbs
Radio Required: 4 channel, 5 servos.
Engine : .72-.91in³ 2-Stroke Glow .72-1.20 in³ 4-Stroke Glow
RC-80EPARF(R/Y)
Rascal EP49 ARF
2012
Wingspan 49"
Wing Area 324 sq.in.
Length 32-1/2"
Weight 22 - 25 oz.
Wing Loading 9.7 - 11.1 oz/sq.ft.
Radio Required 4
Channel, Mini Receiver, 4 Mini Servos
Electric Power 3130-1400 Brushless Motor, 30A ESC, & Propeller (included)
Battery Required 3s1p 850-1400 mAh Lipo
Pack
RC-81ARF

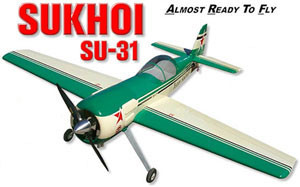

Sukhoi SU31 ARF
Wingspan 76.75"
Wing Area 1152 in²
Length 66.9"
Radio Required 4-Channel with 6 servos
Recommended Engines 2-Stroke Glow 1.50 - 2.1 in³, 4-Stroke Glow 1.80 - 2.7 in³, 2.4 in³ Gas

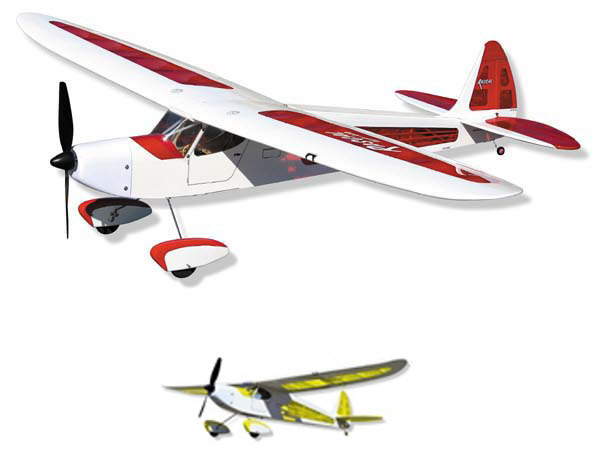

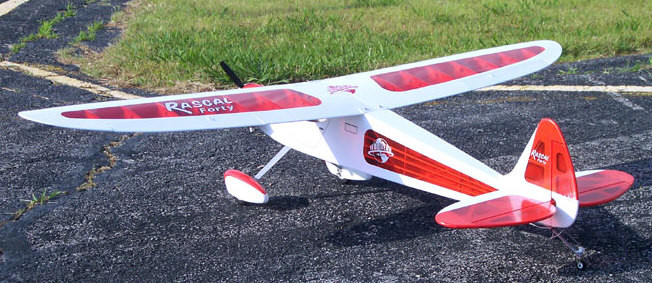

2001

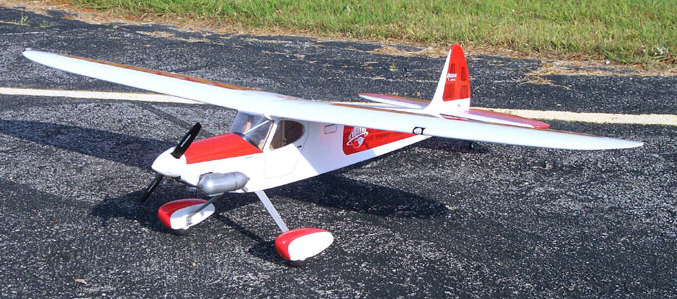

This was eventually re-designed and became the Rascal-72.
Wingspan: 72.5"
Wing Area: 728 in²
Length: 51.75"
Weight: 5 - 5.5 lbs
Radio Required: 4-Channel with 5 Standard Servos
Glow Power: 2-Stroke .40-.46 cu. in. 4-Stroke .40-.54 cu. in.
RC-83EGARF(R/B/G)

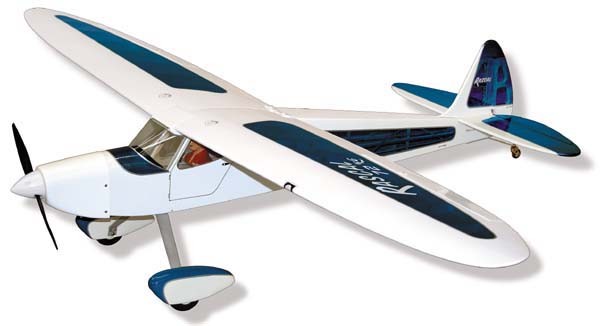

Rascal 72 EG ARF
2012
Wingspan: 72"
Wing Area: 720 in²
Length: 51.75"
Weight: 5 - 5.5 lbs
Radio Required: 4-Channel with 5 Standard Servos
Glow Power: 2-Stroke .40-.46 cu. in. 4-Stroke .40-.54 cu. in.
Electric Power: 500 watt (3528 - 1000kv) Brushless Motor; 50 - 60A ESC; Lipo Battery Pack
