SIG Radio Control ARF's
For some ARFs there are multiple versions, based on size, color, power type, etc. Each has their own kit number. I've listed each variant.
Active kits shown in BLACK
Discontinued kits shown in RED
NOTE: Clicking on most pics will bring them up, much enlarged, in another window.
It seems that I must put this statement on each page of the website.
I have NO affiliation
with
SIG Manufacturing Co.
I do not have magical access to kits. I do not have a store that sells kits.
I do not have access to, or sell kit parts. I do not create kits.
I do have a website that shows every kit SIG has ever put out.
You are seeing it now.

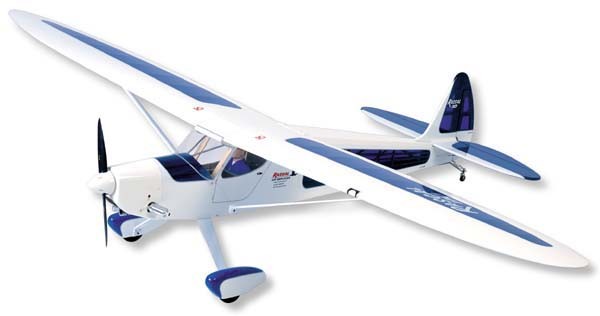

RC-84ARF(R/B)
Rascal 110 ARF
Wingspan - 110"
Length - 75.75"
Area - 1522 Sq.In.
Weight - 11-13 lbs
Radio - 5 channel, 7 svs
Engine - 2-stroke 1.20-1.50, 4-stroke 1.20-1.80
Motor - 1600-2600 watt brushless 200-270kv.
80-120 Amp ESC 8-10S 4000-5000mAh Lipo Pack
RC-84EGVARF(R/B)
Rascal 110 ARF
Wingspan - 110"
Length - 75.75"
Area - 1522 Sq.In.
Weight - 11-13 lbs
Radio - 5 channel
Engine - 2-stroke 1.20-1.50, 4-stroke 1.20-1.80
Motor - 1600-2600 watt brushless 200-270kv.
80-120 Amp ESC 8-10S 4000-5000mAh Lipo Pack
RC-86ARF(B/R)
Nitro Rascal ARF
2003
Wingspan: 49"
Wing Area: 324 sq in
Weight: 18 - 20 oz
Length: 33-7/8"
Engine: .061-.074 cu in 2-stroke
Muffler: Sports-style suppled with engine (engine mounts in an upright position)
Radio: 3-Channel with micro receiver Servos: 3-Micro

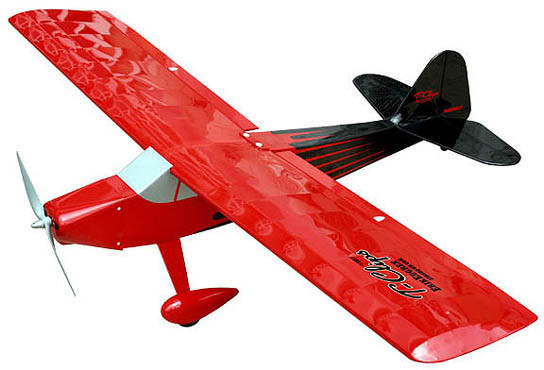

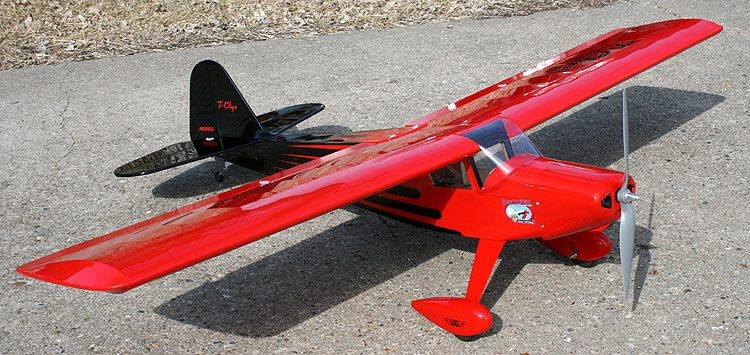

RC-87EPARF
T-Clips EP ARF
Wingspan - 60"
Length - 43"
Area - 630 Sq.In.
Weight - 4.5-5 lbs
Radio - 4 channel
Motor - 500-800 watt brushless 800-1000kv.
60-75 amp ESC 4-6S 3000-5000mAh Lipo Pack
RC-88ARF
Lil Rascal EP
Park Flyer ARF
Wingspan: 29.75"
Length: 20.5"
Weight 8.5-9.5 oz.
Radio - 3-channel

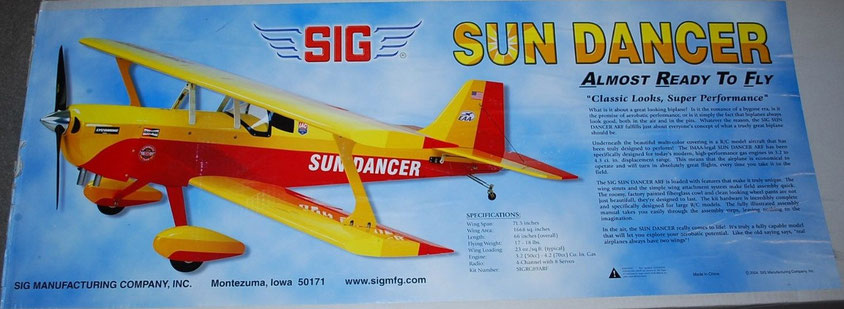

RC-89ARF
Sundancer ARF
2004
Wingspan: 71.5"
Wing Area: 1688 sq in
Weight: 17lb - 18lb
Length: 66"
50 cc - 70cc gas engine

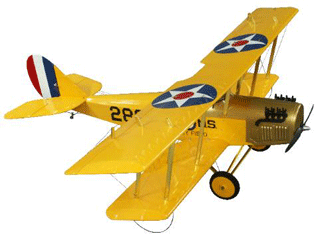

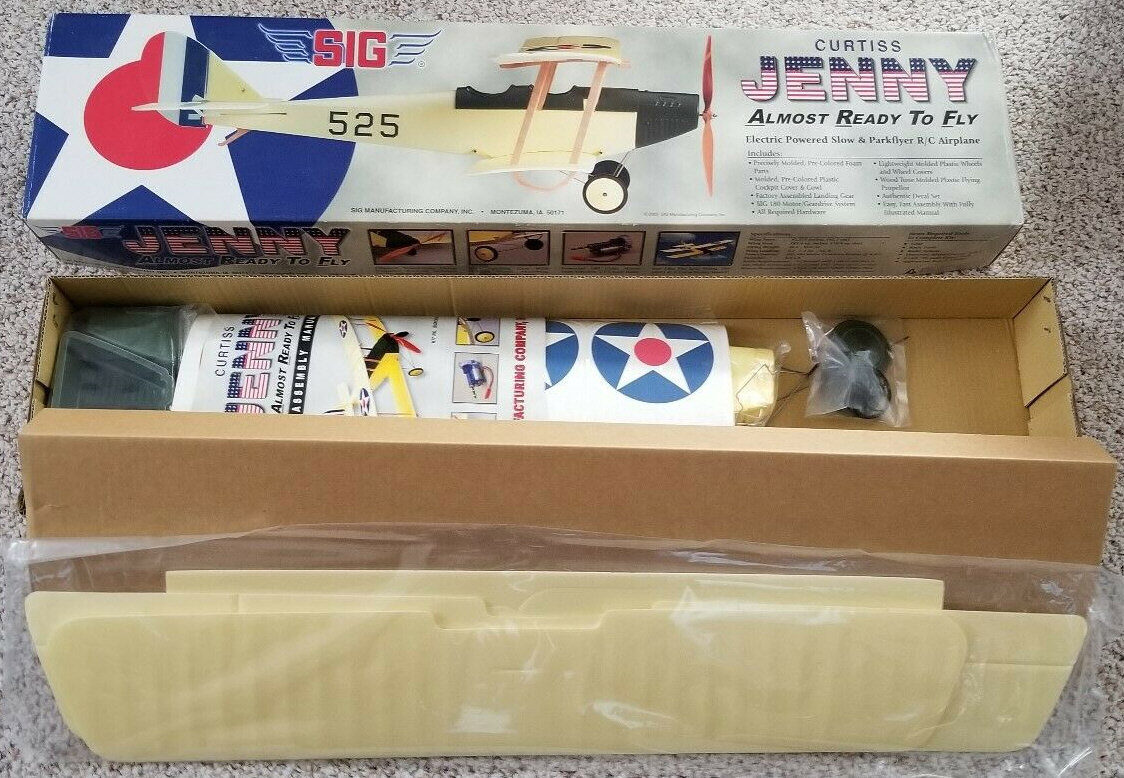

RC-93ARF
Jenny JN-4
Park Flyer ARF
2003
Wingspan 32.375"
area 285"2
weight 10.4-10.6 oz
radio 3 ch
motor geared 180

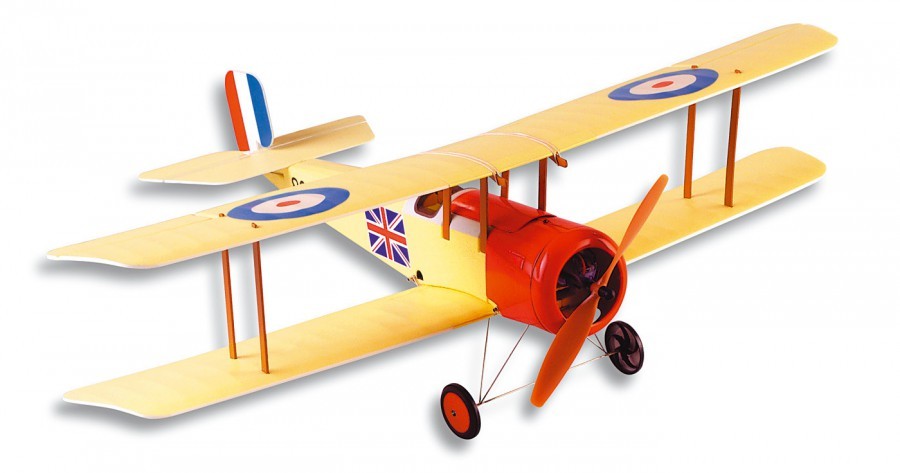

RC-94ARF
Bristol Scout
Park Flyer ARF
Wingspan 30.75"
Length 25.5"
Area 301"2
Motor geared 180
Radio - 3-ch
RC-95ARF
Fokker D-VII
Park Flyer ARF
Wingspan: 32.7"
Wing Area: 273 in²
Length: 23.7"
Weight:
10.7 - 10.9 oz
Radio Required: 3 Channel, 2 Micro Servos, 5 A ESC

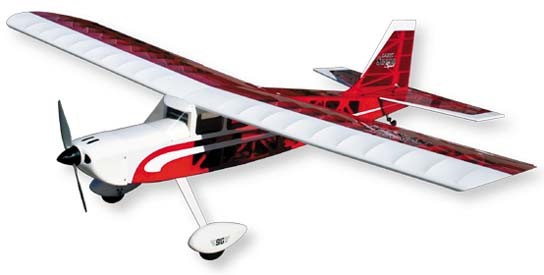

RC-96EGARF(R/B)
Kadet Sr. Sport EG ARF
Wingspan - 78"
Length - 65"
Area - 1148 SqIn.
Weight - 8-8.5 lbs
Radio - 4 channel
Engine - 2-stroke .40-.53, 4-stroke .50-.61
Motor - 600-1100 watt brushless 500-800kv.
60-75 amp ESC 4-6S 4000-5000mAh Lipo Pack

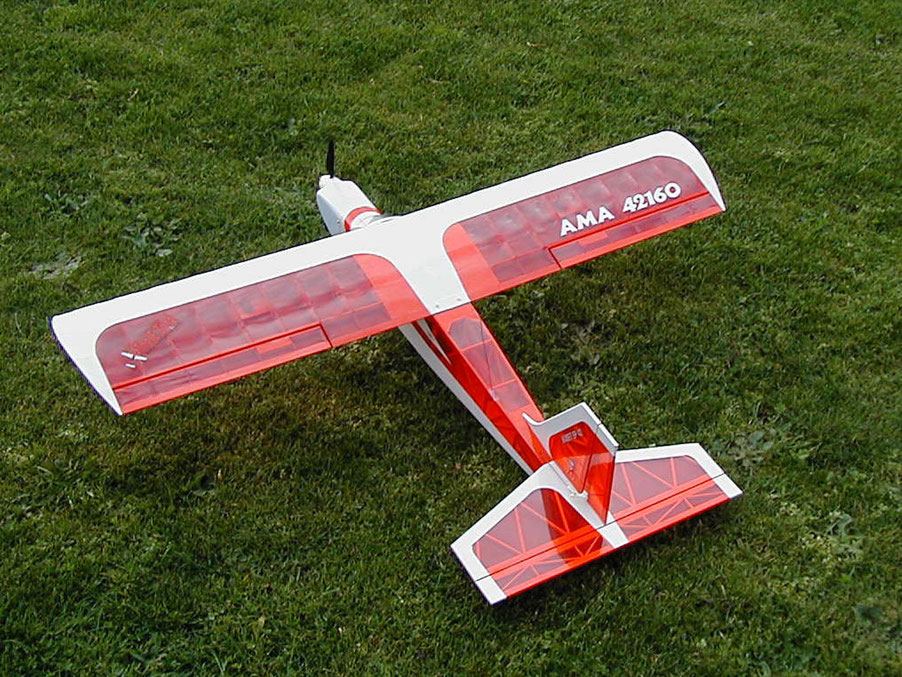

RC-97ARF
Kadet EP42 ARF
Wingspan - 42"
Length - 34"
Area - 330 SqIn.
Weight - 26.2 oz.
Radio - 4 channel
Motor - Super-400 brushless 30 amp ESC

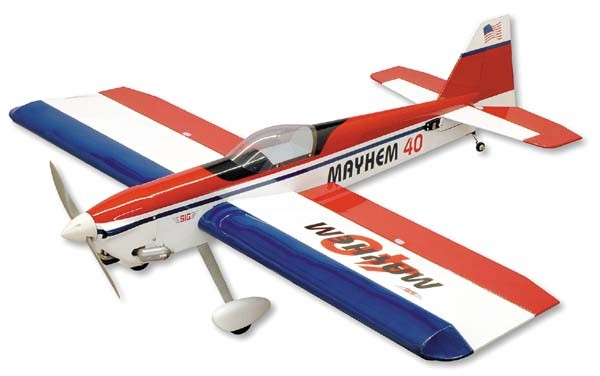

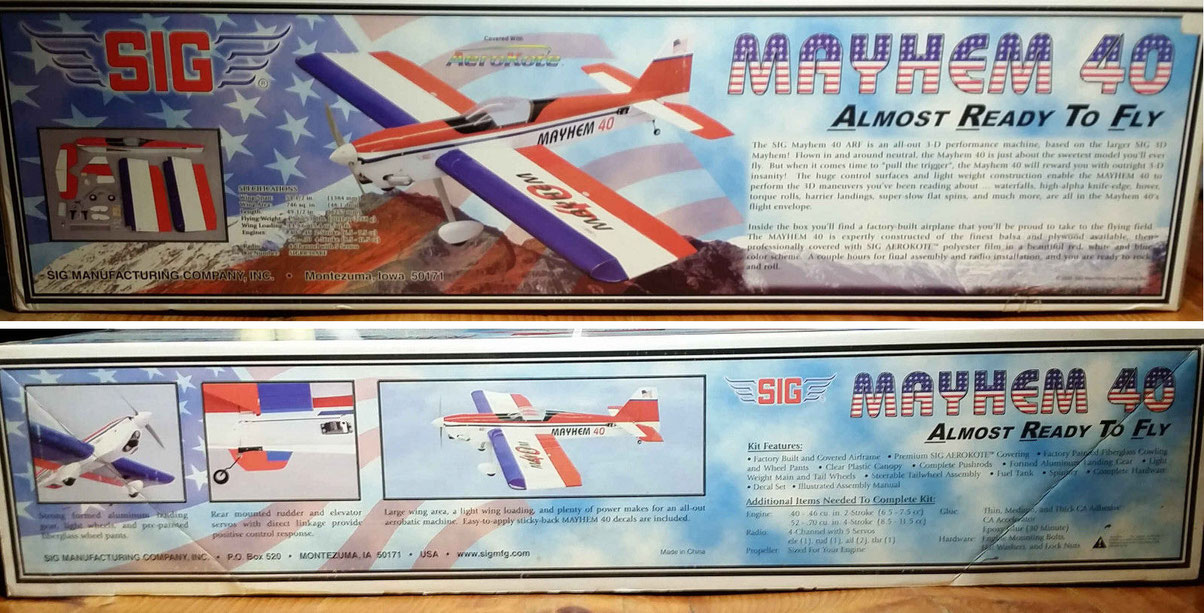

RC-98ARF
Mayhem-40 ARF
Wing Span: 54-1/2"
Wing Area: 746 in²
Length: 49-1/2"
Weight: 4.5 to 5 lbs
Engine Required: .40 to .46 in³ 2-Stroke
.52 to .70 in³ 4-Stroke
Radio Required: 4 Channel, 5 servos

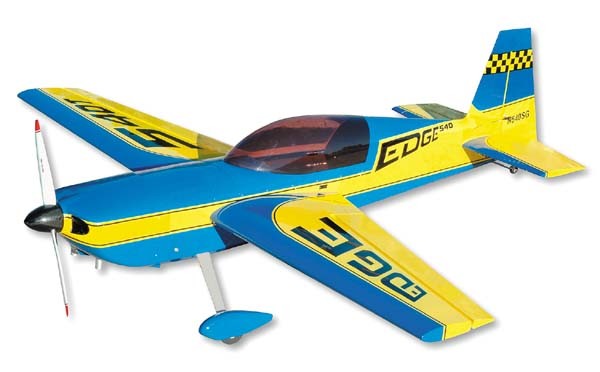

RC-100ARF
Edge 540T ARF
Wing Span: 100"
Wing Area: 1881 in²
Length: 98.25"
Weight: 27.5 lbs
Radio Required:
4 Channel, 8 servos
Engine Required: .95 to 1.10 in³ 2-Stroke, 5,8-6.8 in³
gas

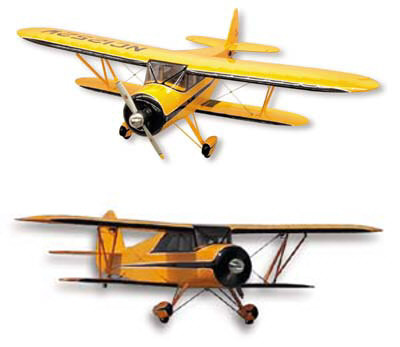

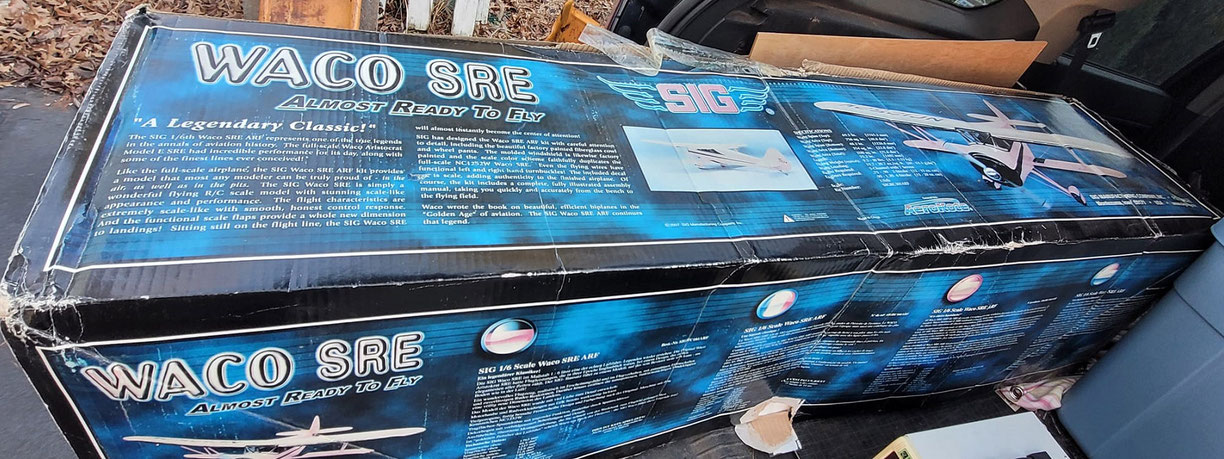

RC-101ARF
WACO SRE ARF
Wingspan (Top): 69.5 in
Wing Area (Top): 756 in²
Wingspan (Bottom): 48.3 in
Wing Area (Bottom): 354 in²
Wing Area (Total): 1110 in²
Length: 55.2"
Weight: 9-1/2 - 10 lbs
Engine Required: .75 - .90 2-Stroke
or .90 - 1.20 4-Stroke
Radio Required: 5 Channel, 7 Servos Controls: Ailerons, Flaps, Elevator, Rudder & Throttle

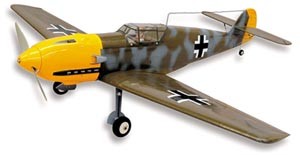

RC-102ARF
Messerschmitt BF-109 ARF
Wing Span: 48"
Wing Area: 396 sq.in.
Length: 42.5"
Weight: 60 oz
Wing
Loading: 21.8 oz./ft²
Radio Required: 4-Channel with 4 Servos
Motor: 300 to 400 watt brushless outrunner
ESC: Brushless (To suit motor)
Li-Po: 3S1P 3300 to 4100 mAh Li-Po (To suit motor)
Propeller: To suit motor
Radio: 4-Channel with 4 Servos 2 each 6 inch servo extensions Short "Y" Harness

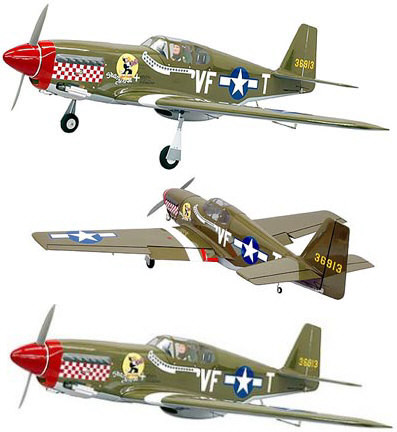

RC-103ARF
P-51B Mustang ARF
Wingspan: 66.9"
Wing Area: 770 in²
Length: 55.9"
Weight: 8.0 - 8.5 lbs
Wing Loading: 23.9 - 25.4 oz./ft²
Engine: .90 - 1.00 in³
2-Stroke or 4-Stroke Glow Engine
Radio: 6-channel radio system, 8 servos
(7 standard servos and 1 retract servo)

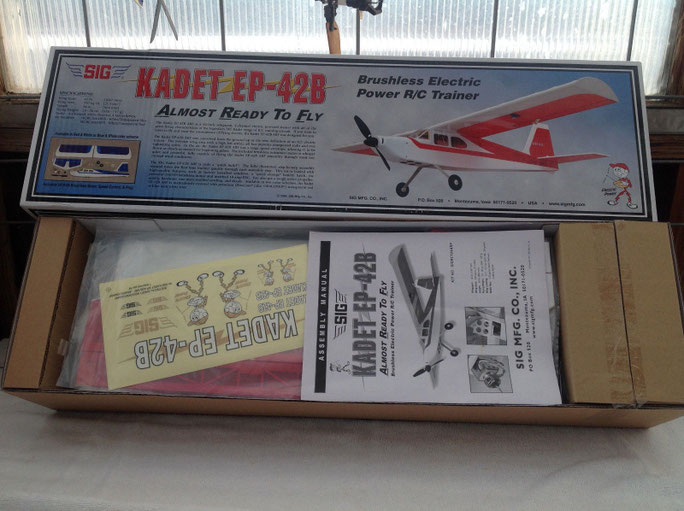

RC-104ARF(R/B)
Kadet EP-42B ARF
2004
Wingspan 42"
Wing Area 330 in²
Length 34"
Weight 24-26 oz
Electric Power 3130-1400 Brushless Motor, 30A ESC, & Propeller - all included!
Radio Required 4 channel, Micro receiver,
4 Micro servos
Battery 3s1p 850-1400 mAh Lipo Pack

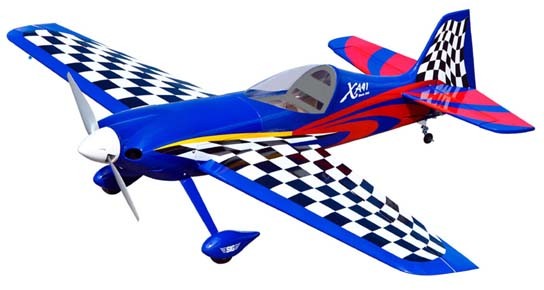

RC-105EPARF
Sbach XA41 ARF
2014
Wingspan - 50"
Length - 44.25"
Area - 500 Sq.In.
Weight - 68-76 oz.
Radio - 4 channel
Motor - 600-800 watt brushless 700-900kv.
60-75 amp ESC 4S 4000-5000mAh Lipo Pack

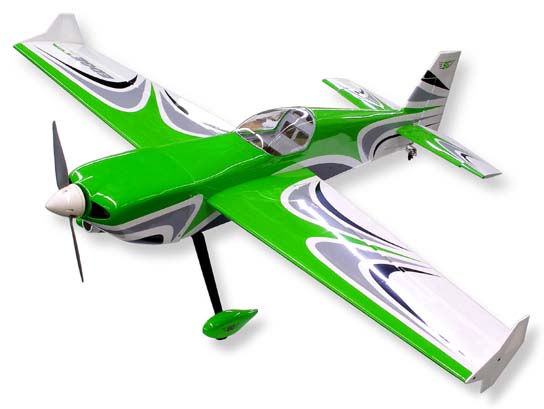

RC-107EPARF
EDGEtra EP ARF
2016
Wingspan - 60"
Length - 60"
Area - 675 Sq.In.
Weight - 5.5-6 lbs
Radio - 4 channel w/ 4 high torque mini servos
Motor - 600-1200 watt brushless 550-800kv.
75 amp ESC 4S 4000-5000mAh Lipo Pack
RC-108EGARF
T-Clips 70 EG ARF
2015
Wingspan - 70"
Length - 50"
Area - 860 Sq.In.
Weight - 7-7.8 lbs
Radio - 4 channel
Engine - 2-stroke .40-.46, 4-stroke .53-.65
Motor - 1200-1700 watt brushless 300-400kv.
75 amp ESC 4-6S 4000-5000mAh Lipo Pack
RC-109EPARF(B/R)
Kadet Seniorita Sport
EP ARF
Designed by: Mike Gretz
Wingspan - 65"
Length - 54.7"
Area - 800 Sq.In.
Weight - 4.8-5 lbs
Radio - 4 channel
Motor - 400-700 watt brushless 700-1000kv.
45-75 Amp ESC 3000-4000mAh Lipo
Pack

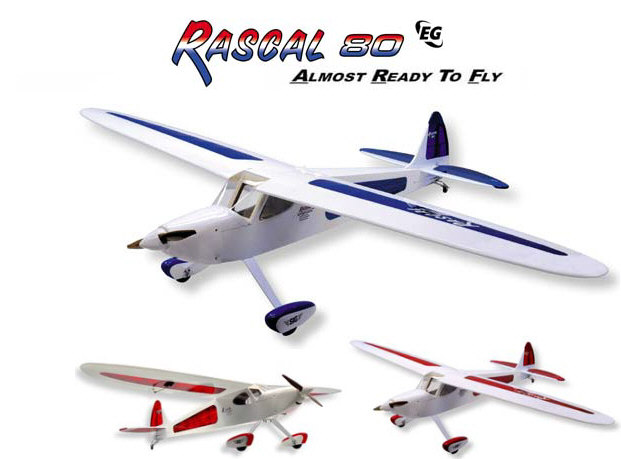

RC-880EGARF(B/R)
Rascal 80 EG ARF
2016
Wingspan -80"
Length - 56"
Area - 800 Sq.In.
Weight - 7-75 lbs
Radio - 4 channel
Engine: 2-Stroke .40-.55 CI 4-Stroke .53-.65 CI
60-80 Amp ESC 4-5S 4000-5000mAh Lipo Pack
Motor - Brushless Outrunner 600-1100 watt, 400-700kv.
